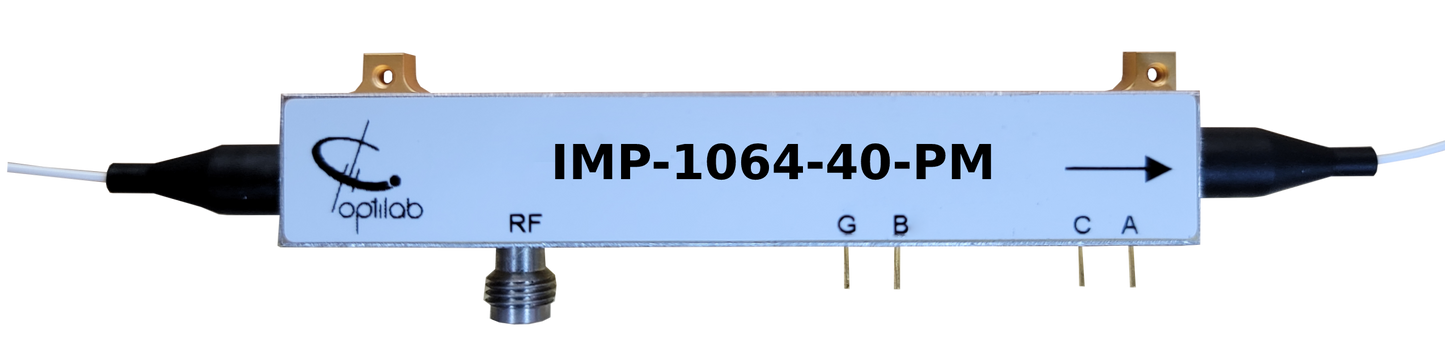

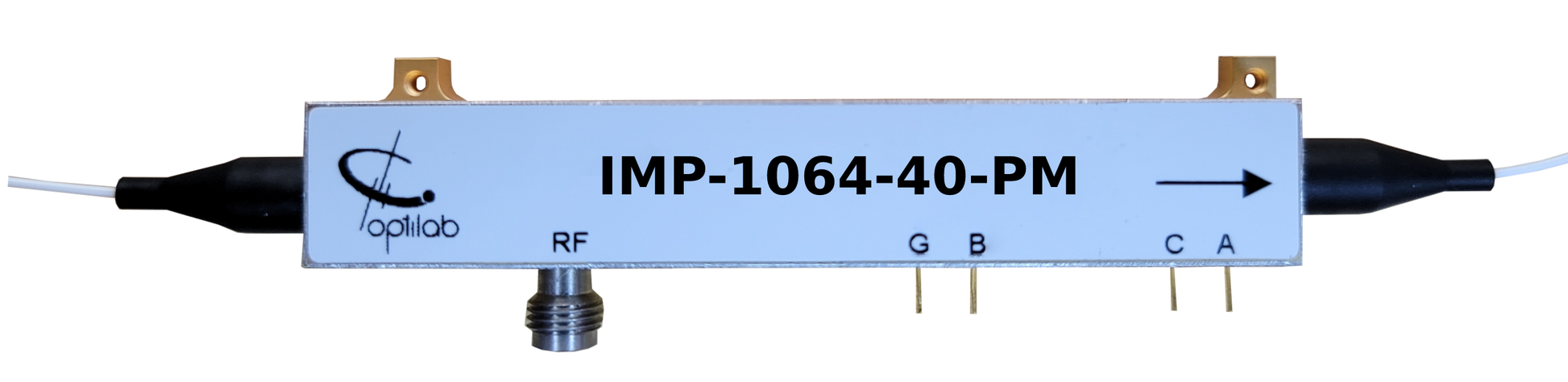

1064 nm, 40 GHz Intensity Modulator, PM Output

The Optilab IMP-1064-40-PM Intensity Modulator is designed for external modulation of 1064 nm laser up to 30 GHz or 40 Gb/s. It is also applicable for pulse generation for Ytterbium-Doped Fiber Amplifier amplification (YDFA) in satellite links and active mode locked laser applications. It is a bias-stabilized lithium modulator that proves to be extremely stable for long periods of time, and features excellent stability in a biased circuit, operating from 1030 nm to 1090 nm. It has an excellent operating temperature tolerance ranging from -30º C to +75º C. The IMP-1064-40-PM uses a Polarization Maintaining (PM) input and output fiber, featuring separate RF and bias ports. Contact Optilab for more information.

Features:

• PM input and output
• High extinction ratio

• 1030-1090 nm wavelength
• Low Drive Voltage
• 3 dB bandwidth up to 30 GHz

Applications:

• Pulse generation for YDFA
• Up to 40 Gb/s Data Rate
• Satellite Link
• Active mode locked laser
• Research and development
