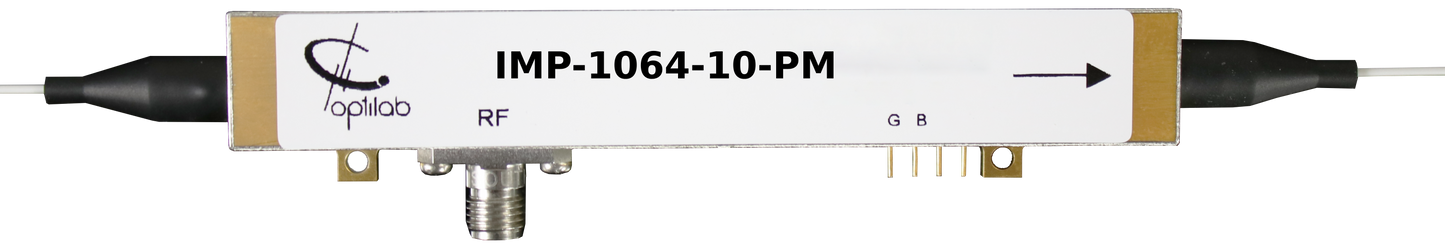

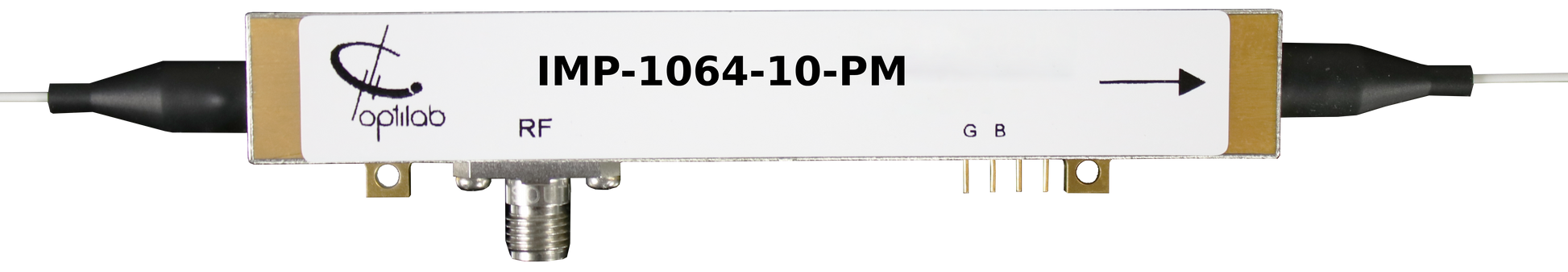

The Optilab IMP-1064-10-PM Intensity Modulator is designed for external modulation of 1064 nm laser; up to 10 GHz or 12.5 Gb/s. It is also applicable for pulse generation for Ytterbium-Doped Fiber Amplifier amplification (YDFA) in satellite links and active mode locked laser applications. It is a bias-stabilized lithium modulator that proves to be extremely stable for long periods of time, and features excellent stability in a biased circuit, operating from 1030 nm to 1090 nm. It has an excellent operating temperature tolerance ranging from -30º C to +75º C. The IM-1064-10-PM uses a Polarization Maintaining (PM) input and output fiber, featuring separate RF and bias ports. Contact Optilab for more information.
3,074.00
Features
➤ 1030 - 1090 nm wavelength
➤ Low Drive Voltage
➤ 3 dB bandwidth up to 10 GHz
➤ PM input and output
➤ High extinction ratio

Applications
➤ Pulse generation for YDFA
➤ Up to 12.5 Gb/s Data Rates
➤ Satellite Link
➤ Active mode locked laser
➤ Research and development

Datasheet

Available Accessories
