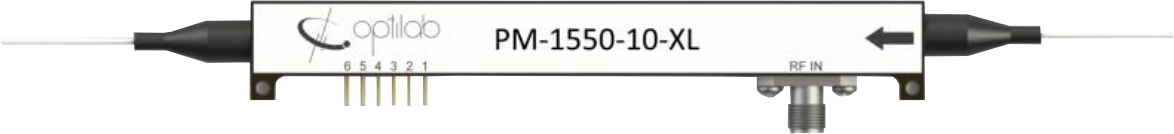

The Optilab PM-1550-10-XL is a high performance, 10 GHz phase modulator for C band. PM-1550-10-XL can provide phase modulation in a broad operation bandwidth with a low driving voltage. Its low insertion loss and high optical power handling capability provides for maximum transmission power. The PM-1550-10-XL is fabricated with Annealed Proton Exchange (APE) optical waveguides on X-cut LiNbO3 material, and uses polarization maintaining input and output fibers, making it easy to integrate with other optical components. Contact Optilab for more information.

Features

➤ X-cut APE Process
➤ High Polarization Extinction Ratio
➤ High Optical Power Handling
➤ PM Input & Output

Applications

➤ Coherent Communications
➤ Optical Chirping
➤ Optical Sensing
➤ FM Spectroscopy
➤ Frequency Shifting
➤ Laser Linewidth Broadening
